Altronix AL1012M220 12 VDC 10 A SPLY W/MOM5 220v

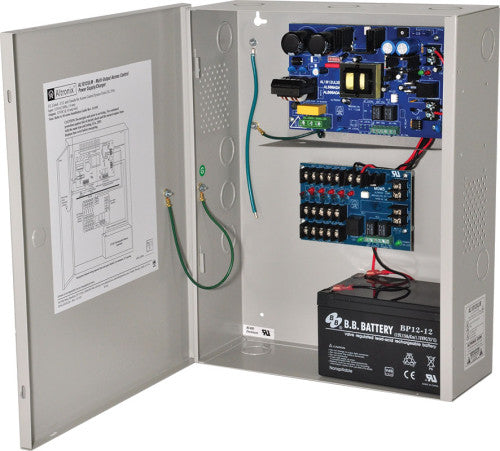

AL1012M220 12 VDC 10 A SPLY W/MOM5 220v AL1012M220 multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 220VAC 50/60Hz input into five (5) individual PTC protected 12VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices. Input Input 220VAC 50/60Hz, 2.2A. Input fuse rated @ 5A/250V. Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input. Output 12VDC outputs. 10A supply current. Five (5) (auto-resettable) individual PTC protected outputs, rated @ 2A. Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC). Filtered and electronically regulated output. Short circuit and thermal overload protection. Current limit is 2A per output. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails (zero voltage drop). (Batteries are sold separately). Supervision AC fail supervision (form "C" contact). Low battery supervision (form "C" contact). Battery presence supervision (form "C" contact). Power fail supervision relay (form "C" contact rated 1A @ 28VDC). Visual Indicators DC output LED indicator. LEDs indicate condition of power outputs. Power & input trigger LEDs. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/hr. System AC input VA requirement: 352VA.
