Altronix AL100UL UL LISTED 12V/750ma PS/CHGR
Product Details

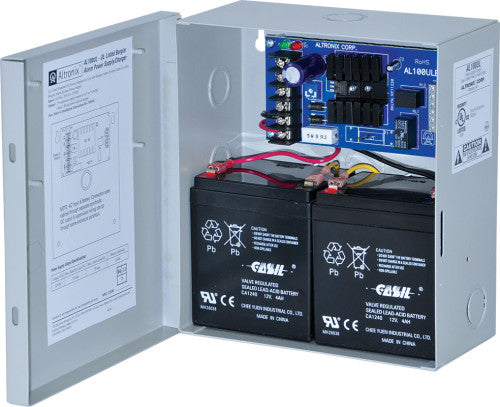

Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output. Input 16.5VAC, 20VA from UL Listed, Class 2 transformer (sold separately). Output 12VDC output. 750mA supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switchover to stand-by battery when AC fails. Low battery disconnect prevents batteries from deep discharge. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0 to 49° C (32 to 120° F ) Storage: - 20 to 70° C ( -4 to 158° F) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 5 BTU/Hr. System AC input VA requirement: 26.45VA.
