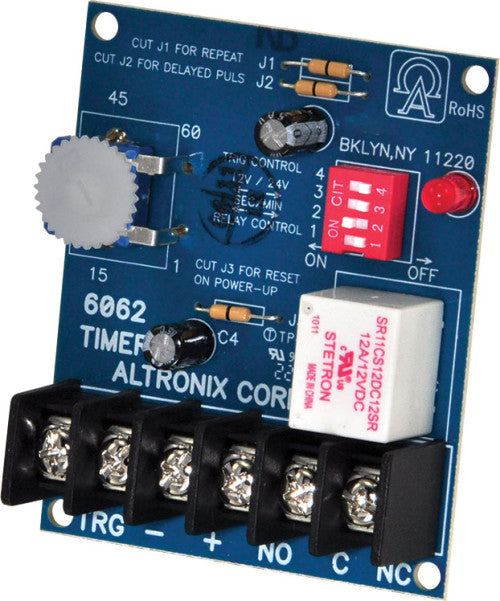

Altronix 6062 MULTI FUNCTION TIMER 12/24VDC
Altronix 6062 MULTI FUNCTION TIMER 12/24VDC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix 6062 MULTI FUNCTION TIMER 12/24VDC
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix 6062 MULTI FUNCTION TIMER 12/24VDC
Product Details
6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher.
Specifications
Input
12VDC or 24VDC operation is selectable.
Current Draw
Stand-by: 3mA, Relay energized: 40mA.
Relay
Selectable relay activation at the start or end of the timing cycle.
One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
Features
Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
Built-in reset feature which cancels timing cycle.
Repeat (flasher/pulse) mode.
Visual Indicators
LED indicates relay is energized.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
