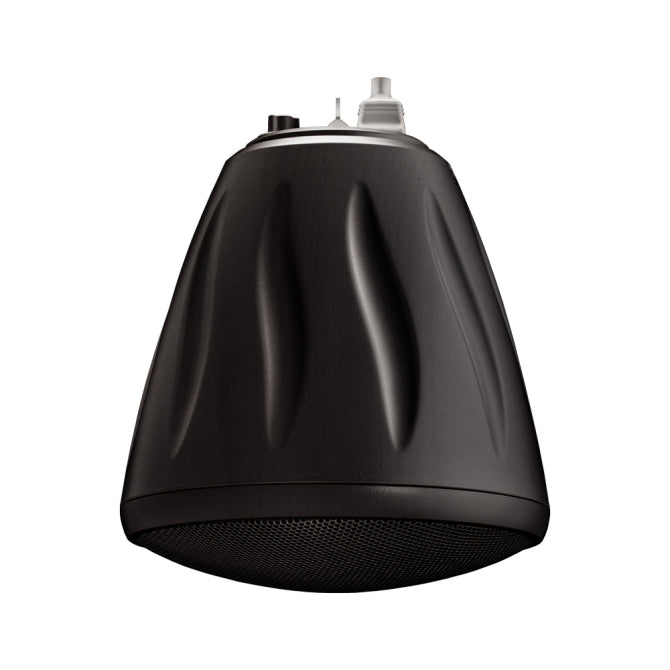

SoundTube RS500i 5.25" Hanging Speaker with a BroadBeam Tweeter, Each

$273.60

Color

Black White

Product variants

SoundTube RS500i 5.25" Hanging Speaker with a BroadBeam Tweeter, Each - Black is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

SoundTube RS500i 5.25" Hanging Speaker with a BroadBeam Tweeter, Each

Product Details

The RS500i has a 5.25-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design that delivers effective low-end response (61 Hz) and 105° off-axis performance (2 to 10 kHz, independently verified). The speaker uses patented ZeroReflection^™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam^® waveguide tweeter system delivers consistent high-performance audio coverage across the operating band-width. The RS500i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking with transformer bypass position. Includes UL listed hanging hardware with cables and integrated SpeedClamp^™ self-locking wire grip for fast, easy and secure installation. Euro-block connector and terminal weather boot are included.

Specifications

Color	Black, White
Manufacturer	SoundTube
Manufacturer's Category	RSi Original Pendant
Height	11.74 in / 298.2 mm
Width/Diameter	9.68 in / 245.9 mm
Shipping Weight	23 lbs / 10.43 kg
Carton Height	13.5 in / 342.9 mm
Carton Length	22.25 in / 565.15 mm
Carton Width	12.25 in / 311.15 mm
Certifications	CE, MIL Spec, RoHS, UL1480A, UL2239
Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume	339.7 cu in / 5566.69 cu cm
Included Accessories	Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Optional Accessories	Black Grille (GRL-RS500-BK)\|10' Hanging Cable (AC-RS-HH-10)\|20' Hanging Cable (AC-RS-HH-20)\|50' Hanging Cable (AC-RS-HH-50)\|Black Mounting Bracket (AC-RS-SM5-BK)\|Connector (EUROBLOCK)\|Black Weatherboot (WEATHERBOOT-L-BK)\|Beam Clamp (AC-BC1)\|Forged Eye Bolt (AC-FE1)\|Black Split Loom Tubing (AC-SLT-10-BK)\|Snap Link (AC-SL1)
Source Inputs	4 Pin 5.08mm Euroblock
TAA Compliant (Trade America)	No
BAA Compliant (Made in USA)	No
Coverage Angle (±6dB @ 2kHz)	105°
Crossover Frequency	3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)	12.3 and 4.8
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)	10.9dB and 5.4dB
Frequency Response (± 10 dB)	61 Hz - 22 kHz
Frequency Response (± 3 dB)	87 Hz - 22 kHz
Grille Properties	Powder-Coated, Steel
Low Frequency Voice Coil	1 in / 25.4 mm
Low Pass Crossover	12 dB per octave 2nd order
Max. Continuous Power RMS	75W
Max. Program Power	150 W
Minimum Impedance (Ω Ohms)	4.9 Ω
Network Type: High Pass	12 dB per octave 2nd order
Nominal Impedance (Ω Ohms)	8 Ω
Tweeter Driver	1" Convex Aluminum w/ BroadBeam® Waveguide
Woofer Driver	5.25" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M	86.5 dB
Sensitivity dB @ 2.83V/1M	86.5 dB
Tap Selector	Rotary Switch
Transformer Options	25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V)	5W/33W/33W

Downloads

TechSheet

Manual
