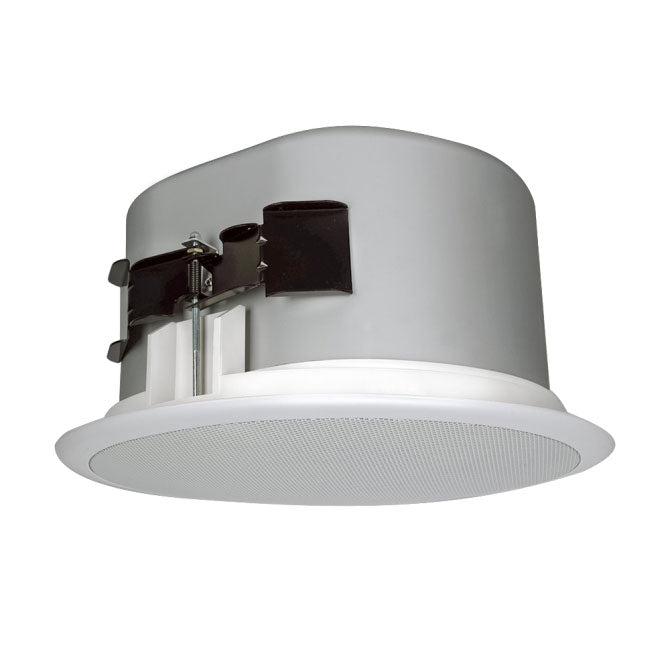

SoundTube CM600I 6.5" In Ceiling Speaker with a BroadBeam Tweeter
Product Details
Patented BroadBeam™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 6.5 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum motor-board and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.69 inch (42.9 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
Included accessories: Tile bridge, Euroblock connector, paint mask, conduit plate.
Specifications
| Color | Black, White |
|---|---|
| Manufacturer | SoundTube |
| Manufacturer's Category | CMi In-Ceiling |
| Shipping Weight | 35 lbs / 15.88 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 32 in / 812.8 mm |
| Carton Width | 14 in / 355.6 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclosure Properties | ABS, Aluminum, Ported |
| Included Accessories | Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge |
| Optional Accessories | Black Metal Grille (GRL-CM6/8-BK)|Black Weather-Guard Grille (GRL-CM6/8-WG-BK)|Black Flangeless Grill (GRL-CM6/8-FLG-BK)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 11.68 in / 296.7 mm |
| Backcan Height | 7.94 in / 201.7 mm |
| Coverage Angle (±6dB @ 2kHz) | 135° |
| Crossover Frequency | 3.0 kHz |
| Cutout Width/Diameter | 12.75 in / 323.9 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4 and 5.4 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 dB and 7.3 dB |
| Frequency Response (± 10 dB) | 52 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 69 Hz - 22 kHz |
| Grille Properties | Black, Standard-Flange, Magnetic, Powder-Coated, Paintable, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.91 in / 48.5 mm |
| Max. Continuous Power RMS | 90W |
| Max. Program Power | 180 W |
| Minimum Impedance (Ω Ohms) | 5.3 Ω |
| Minimum Ceiling Thickness | 0.25 in / 6.4 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1" BroadBeam® |
| Woofer Driver | 6.5" Polypropylene |
| Sensitivity dB @ 1W/1M | 88 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
| Visible Diameter | 14.76 in / 374.9 mm |
| Visible Height | 1.08 in / 27.4 mm |
