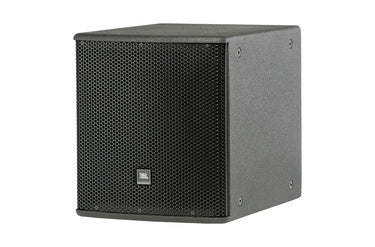

JBL Professional ASB6115 Woofer - 675 W RMS - Black, Each

Name: JBL Professional ASB6115 Woofer - 675 W RMS - Black, Each
Brand: JBL Professional
SKU: ASB6115
Price: 1136.85 USD
Availability: InStock

$1,136.85

JBL Professional ASB6115 Woofer - 675 W RMS - Black, Each is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

JBL Professional ASB6115 Woofer - 675 W RMS - Black, Each

High Power Compact 15-inch Subwoofer

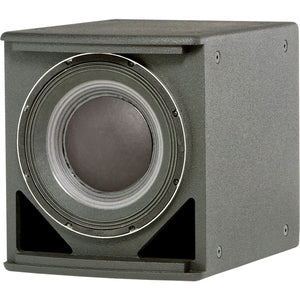

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

Specifications

Frequency Range (-10dB)	32 Hz - 1 kHz
Frequency Response (±3 dB)	42 Hz - 1 kHz
Transducer Power Rating (AES)	800 W (3200 W peak), 2 hrs.
System Power Rating	675 W (2700 W peak), 100 hrs.
Maximum SPL (1m)	35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight (each)	20.6 kg (45.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
