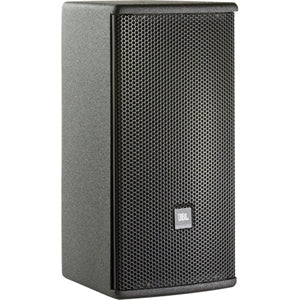

JBL Professional AC18/26 2-way Stand Mountable, Wall Mountable, Ceiling Mountable Speaker - 250 W RMS - Black, Each
Product Details
The AC18/26 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC18/26 utilizes an 8" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.
Specifications
| Category | Property | Details |
| General Information | Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AC18/26 | |
| Brand Name | JBL Professional | |
| Product Model | AC18/26 | |
| Product Name | AC18/26 Compact 2-way Loudspeaker | |
| Product Type | Speaker | |
| Technical Specifications | Crossover Type | 2-way |
| RMS Output Power | 250 W | |
| PMPO Output Power | 1000 W | |
| Frequency Response | 63 Hz – 19 kHz | |
| Impedance | 8 Ohm | |
| Max Crossover Frequency | 1.60 kHz | |
| Sound Pressure Level (SPL) | 116 dB | |
| Sensitivity | 92 dB | |
| Driver Information | LF Driver Size | 8" (Symmetrical Field Geometry) |
| LF Voice Coil | 2.5" copper-clad aluminum edge wound | |
| HF Driver Size | 1" exit compression driver | |
| Waveguide | 120° x 60° rotatable PT™ (Progressive Transition) | |
| Physical Characteristics | Form Factor | Stand, Wall, or Ceiling Mountable |
| Enclosure Material | Plywood | |
| Grille Material | Perforated-steel with Foam backing | |
| Color | Black | |
| Dimensions (H x W x D) | 18.5" x 9.4" x 10" | |
| Weight (Approximate) | 28.22 lb | |
| Miscellaneous | Certifications | Mil-Std 810, IPx3 per IEC529 |
| Warranty | 5 Year Limited |
