JBL Professional AC15 5.25" 2-way Ceiling Mountable, Wall Mountable Speaker - 150 W RMS - Black, Each
Product Details

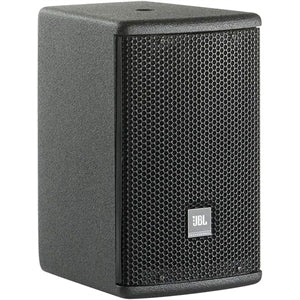

The AC15 is an ultra-compact full- range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90°x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25" Symmetrical Field Geometry (SFG™) LF Transducer with a copper- clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.
Specifications
| Category | Property | Details |
| General Information | Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AC15 | |
| Brand Name | JBL Professional | |
| Product Model | AC15 | |
| Product Name | AC15 Ultra Compact 2-way Loudspeaker | |
| Product Type | Speaker | |
| Technical Specifications | Crossover Type | 2-way |
| RMS Output Power | 150 W | |
| PMPO Output Power | 600 W | |
| Frequency Response | 90 Hz – 18 kHz | |
| Impedance | 16 Ohm | |
| Max Crossover Frequency | 3.30 kHz | |
| Sound Pressure Level (SPL) | 108 dB | |
| Sensitivity | 86 dB | |
| Driver Information | LF Driver Size | 5.25" (Symmetrical Field Geometry) |
| LF Driver Material | Aluminum / Copper-clad voice coil | |
| HF Driver Size | 1" | |
| HF Driver Material | Dome Tweeter | |
| Coverage Pattern | 90° x 90° Waveguide | |
| Physical Characteristics | Form Factor | Ceiling / Wall Mountable |
| Enclosure Material | Plywood | |
| Grille Material | Perforated-steel | |
| Color | Black | |
| Dimensions (H x W x D) | 9.5" x 5.9" x 7" | |
| Weight (Approximate) | 10.50 lb | |
| Miscellaneous | Certifications | Mil-Std 810, IPx3 per IEC529 |
| Warranty | 5 Year Limited |
